Petzl Jag Traxion Pulley

Price: $164.95
Item Number: 23541654
Add to a new shopping list

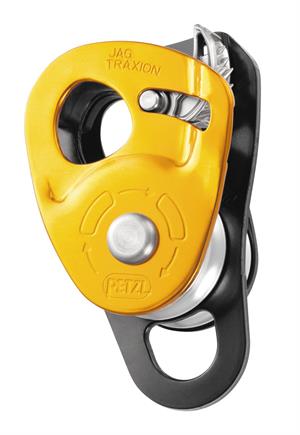

Jag Traxion Pulley

High-efficiency double progress capture pulley

The JAG TRAXION double progress capture pulley is designed for use with the JAG pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.


  • Designed for use with the JAG double pulley to make a 4:1 haul system
  • Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...)
  • Sheave mounted on sealed ball bearings for excellent efficiency

    • Specifications

  • Weight: 145 gCertification(s): CE EN 567, NFPA 2500/1983 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 6 kN
  • Breaking strength: 16 kN
  • Efficiency: 91 %


    • WARNING

    This product can expose you to chemicals including nickel acetate which is known to the State of California to cause cancer.

    For information go to: www.p65warnings.ca.govt
