Delta Shape Rapid Links
Price: From $10.10 to $22.50
Product Options
| Size: |
|
|
|

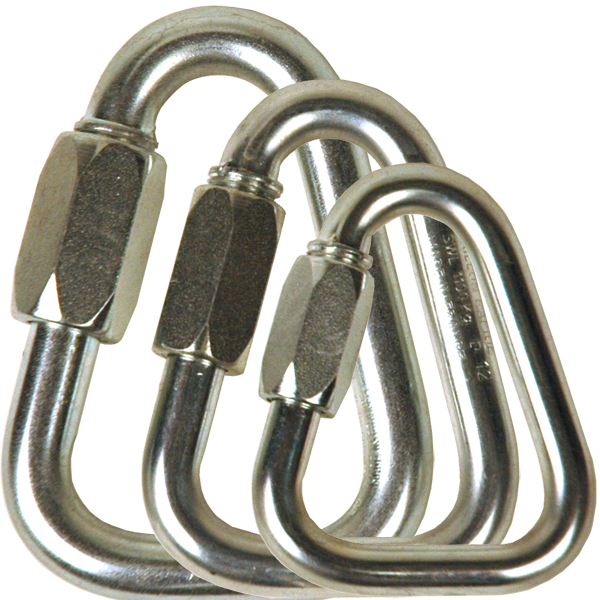

Links are often used as an inexpensive alternative to standard carabiners. They are most effective in applications for semi-permanent attachments. The Delta shape Tri-link is used where multi-directional loading is encountered. All links are complete with a long threaded nut closure.
| Part # |
Description |
Size |
Dimension |
Gate Open |
Strength |
WLL |
Weight |
| 60510210 |
Delta Link |
10mm |
3.4” x 2.6” |
7/16” |
9,920 lbf. |
990 lbs. |
5.6 oz. |
| 60510212 |
Delta Link |
12mm |
4.85” x 2.9" |
19/32” |
12,125 lbf. |
1,213 lbs. |
8.8 oz. |
| 60510214 |
Delta Link |
14mm |
4.75” x 3.3“ |
5/8” |
19,840 lbf. |
1,984 lbs. |
13.6 oz. |
|
