Arachnipod Multipod Bridge Add-on

Price: From $4,000.00 to $5,000.00

Product Options

Kit Size:

Arachnipod Bridge KitArachnipod Bridge Kit

For information go to www.arachnipod.com

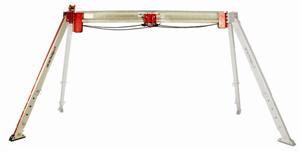

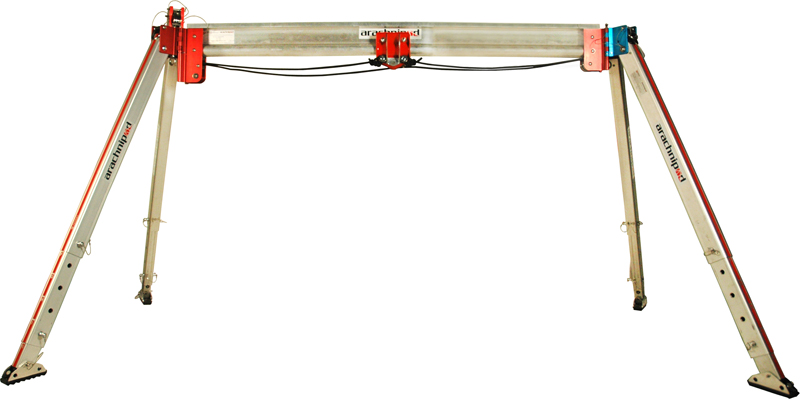

This is a feature unique to the Arachnipod. The bridge is used for spanning larger openings or voids where a regular tripod, A-frame or quadpod would not be able to, such as trenches, large holes, mines and lift shafts.  A trolley is fitted to the bridge beam and can be hauled back and forth using the included trolley positioning line.  A mechanical advantage system such as the RescueTECH Extractor Kit (not included).  The Extractor is a pre-rigged 4:1 Block and Tackle style hauling kit with an integral safety brake.

 It comes as a complete item with trolley, trolley guide rope and heads ready to attach two legs on each end. There is also a tie bar on one end for use with an English Reeve system. However, a remote brake mechanical advantage system can also be attached directly to the trolley. Bridge Add-on requires an Arachnipod multipod to function.



Part # Description Length Extra Leg Tether Bag Weight
24481702 2M Bridge 2M (6.5 ft.) Standard Leg Rope w/ Adjuster 2M Bag 90 lbs.
24481703 3M Bridge 3M (9.85 ft.) Standard Leg Rope w/ Adjuster 3M Bag 120 lbs.
24481704 4M Bridge 4M (13 ft.) Standard Leg Rope w/ Adjuster 4M Bag 180 lbs.
