SMC Advance Tech HX Progress Capture Pulley

SMC Advance Tech HX Progress Capture Pulley (OR)

Price: $185.00

Item Number: 2540154900

Quantity:

Add to a new shopping list

SMC Advance Tech HX Progress Capture Pulley

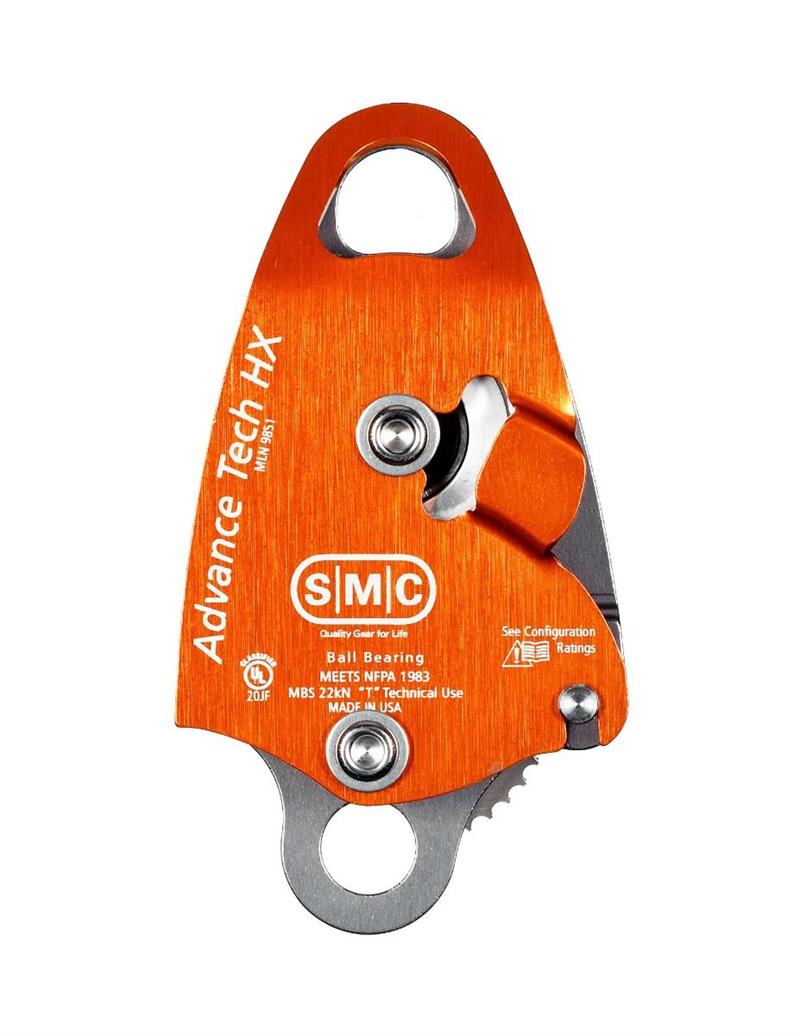

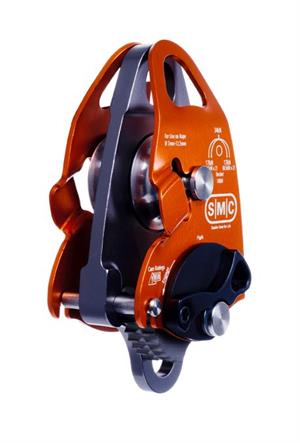

The SMC Advance Tech HX Pulley is a double pulley with an integrated cam that provides immediate progress capture without needing prusik loops. The all-in-one frame and cam design present a compact form factor. Stainless pins retain the rope when a rigged system is packed so that system can be pulled out and used immediately. Manufactured from high-quality aluminum and anodized to help prevent corrosion. The Advance Tech HX is the most advanced pulley on the market today. The Advance Tech HX will support rope diameters from 7mm up to 12.5mm. The Advance Tech HX is ideal for all rescue applications with a small mechanical advantage system.

FEATURES AND BENEFITS:

Integrated Cam for progress capture without the need for prusiks.

High-efficiency sealed ball bearings providing flawless function under conditions that would shut down lesser-grade pulleys.

Side plates are precisely tensioned for easy one-handed operation and secure placement at any point along the rope.

Low-profile fasteners reduce snagging and hanging up when moving the pulley.

Wide base design works most efficiently with Prusik cords of up to 8mm.

Made in the USA

Haul System Strength:

Cam Rating 4:1 Haul System Strength - Typical 4:1 system rigged using the Advance Tech HX with cam engaged on the 4th leg and standard double Pulleys. The system utilized the becket on the Advance Tech HX Pulleys. The system was pulled end to end using carabiner holes.

7mm: 2,000 lbf. (8.9kN)

9mm: 2,500 lbf. (11.1kN)

12.5mm: 4,500 lbf. (20kN)
