TRC Super Duty Picket Set

Price: From $95.00 to $390.00

Product Options

Options:

Personalization

* denotes required field

I acknowledge that due to the size of this product the shipping charges for this item may exceed the charges shown on my shopping cart and all stretchers and tripods are too long to ship to APO's.**
Answer 1
RescueTECH TRC Super Duty Picket Set

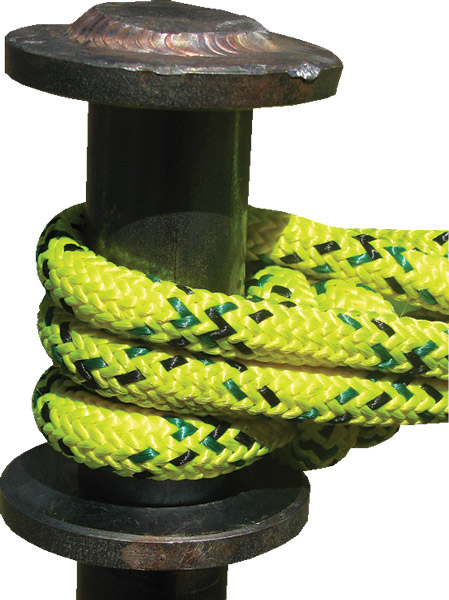

RescueTECH TRC Super Duty Picket SetTRC Super Duty Picket Set In UseTRC Super Duty Picket Set TopTRC Picket CaseTRC Picket Case

Designed to give the strongest picket placement. Features 10" x 7.25" rigging fins (3/8" thick) that stabilize the pickets with more lateral surface area than standard round pickets. These fins increase holding power above the limits placed on standard round pickets. Each picket has 8 holes (.75" dia) to aid in system rigging. These pickets give you multiple rigging options. Made from 1" cold rolled steel. Set includes 2 TRC pickets and 1 windlass picket. Optional storage bag (pickets not included with bag).


Model # Item Name
603204 TRC Picket Set
603202 Picket Storage Pack
603205 TRC Std Duty Picket, each


Config.
Picket length: 48"
Picket Weight: 16.5lbs. each

Holding capacity of standard round pickets per US Army Core of Engineers testing.
  • Single picket: 700 pounds (3.14 kN)
  • 1:1 - 1,400 pounds (6.28 kN)
  • 1:1:1 - 1,800 pounds (8.07 kN)
  • 2:1 - 2,000 pounds (8.96 kN)
  • 3:2:1 - 4,000 pounds (17.93 kN)
  • Multipliers for special soil types:
  • Clay and gravel mixtures. 0.9
  • River clay and Sand. 0.5
