Swivel Eye Steel Snap Hooks
Price: From $42.50 to $50.75
Product Options
Style: |
|
|
|

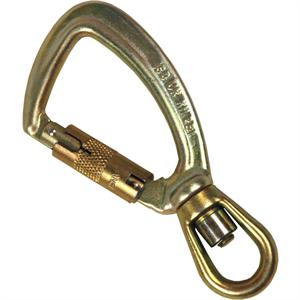

The Swivel Eye Snap hooks is forged from high strength steel, heat-treated, and plated for durability.
Available in 3 locking options: Screwgate, TwistLock, and Supersafe.
Each Style is available with Fall indicator.
Part # |
Description |
Strength |
WLL |
Dimensions |
Gate Opening |
Weight |
Color |
201426020 |
Screwgate |
8,993 lbf. (40 kN) |
899 lbs (408.6 kg) |
xxx x xxx (xxx x xxx mm) |
1 (25.2mm) |
xx oz. (xx gm) |
Gold |
20142602 |
Screwgate w/ Fall Indicator |
8,993 lbf. (40 kN) |
899 lbs (408.6 kg) |
xxx x xxx (xxx x xxx mm) |
1 (25.2mm) |
xx oz. (xx gm) |
Gold |
201426030 |
Twistlock |
8,993 lbf. (40 kN) |
899 lbs (408.6 kg) |
xxx x xxx (xxx x xxx mm) |
1 (2.52 mm) |
xx oz. (xx gm) |
Gold |
201426031 |
Twistlock w/ fall indicator |
8,993 lbf. (40 kN) |
899 lbs (408.6 kg) |
xxx x xxx (xxx x xxx mm) |
1 (25.2mm) |
xx oz. (xx gm) |
Gold |
201426040 |
Twistlock |
8,993 lbf. (40 kN) |
899 lbs (408.6 kg) |
xxx x xxx (xxx x xxx mm) |
1 (25.2mm) |
xx oz. (xx gm) |
Gold |
201426041 |
Twistlock w/ fall indicator |
8,993 lbf. (40 kN) |
899 lbs (408.6 kg) |
xxx x xxx (xxx x xxx mm) |
1 (25.2mm) |
xx oz. (xx gm) |
Gold |
|
|

Catalog PDF,28.7 MB
|
|
